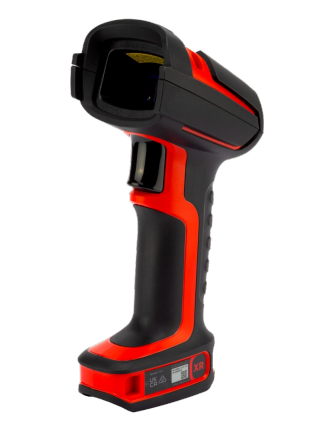

Honeywell - Granit Ultra 2100i Series
Handheld 2D Barcode Reader
  |
The Honeywell Granit Ultra 2100i Series Barcode Scanners offer ultra scan performance, ultra durability, and ultra ease of use for premium productivity in rugged scanning applications. Model read ranges from contact upto arms length, upto 10m, or upto 30m. For a scanner to optimize productivity, it should read and transmit common barcodes nearly as fast as the user can pull the trigger, and the Granit Ultra is engineered to do just that. The Granit Ultra 2100i integrates high speed processing, AI algorithms, and decoding enhancements that result in an average of a 45% scanning speed increase vs. Granit XP1, providing improved productivity. In the modern warehouse, distribution center, and manufacturing environments, any scanner must be durable enough to survive harsh operating conditions. It is under exactly these kinds of rough environmental conditions that the Granit range has been designed to deliver outstanding performance operating in. Ready to operate right out of the box for many applications, the Granit range offers easily customisable configuration in the time it takes to scan a barcode. For further workflow improvement, the Granit Series can also read multiple codes in the field of view, organizing and outputting the data in a predefined order, using Honeywell’s Data Format Editor tools. Features
|
|---|
Specifications
| Granit Ultra 2100i | Granit Ultra 2105i | 2105i Charge/Communication Base | |
|---|---|---|---|
| Mechanical | |||
| Dimensions | 195 mm L x 76 mm W x 140 mm H | 195 mm L x 76 mm W x 140 mm H | 250 mm L x 102 mm W x 81 mm H |
| Weight | 330g | 425g | 357g |
| Environmental | |||
| Operating Temperature | -30 to 50°C | -20 to 50°C | - |
| Storage Temperature | -40 to 70°C | - | |
| Relative Humidity | 0% to 95% non-condensing | - | |
| Charging Temperature | - | 5° to 35°C | |
| Drop | 3m: MIL-STD-810G, 25°C, 55% relative humidity 2.5m: 20 drops from -30°C to 50°C, 55% relative humidity 2m: 50 drops from -30°C to 50°C, uncontrolled relative humidity | - | |
| Tumble | 7,500 1m (3.3ft) tumbles | - | |
| Vibration | Withstands 5G peak from 5 to 300Hz | - | |
| Trigger activations | Tested to 3 million cycles | - | |
| Environmental Sealing | IP65 | ||
| Light Levels | 0 to 100,000 lux(9,290 foot-candles) | - | |
| ESD | ±20 kV air discharge, ±8 kV contact discharge | - | |
| Electrical | |||
| Battery | - | 3300 mAh Li-ion | - |
| Charging Power | - | 2.5W/500mA @ 5V - USB 2.0 7.5W/1500mA @5V - USB-C, or using external power supply | |
| Input Voltage | 4.0 V DC to 5.5V DC | - | 4.0 V DC to 5.5V DC |
| Operating Power | - | 2.15W/430mA @5V | - |
| Standby Power | 0.875W/175mA @ 5V | 0.6W/120mA @ 5 VDC | - |
| Expected Operation | - | Battery: 14 hours(1 scan per second) | - |
| Expected Charge Time | - | USB 2.0: 12 hours USB-C: 4 hours External Power Supply: 4 hours | |
| Optical | |||
| Optics | 2D SR Area Imager (1280 x 1080 pixel array) 2D XR Near-Far Area Imager (1920 x 1080 pixel array) 2D XLR Near-Far Area Imager (1900 x 800 pixel array) | - | |
| Motion Tolerance | Up to 4000 mm/second | - | |
| Scan Angles | SR: Horizontal: 42°, Vertical 36° XR-Near: Horizontal 42°, Vertical 36° XR-Far: Horizontal 16°, Vertical 14° XLR-Near: Horizontal: 45°, Vertical 19.6° XLR-Far: Horizontal 13.7°,Vertical 5.7° | - | |
| Roll, Pitch, Skew | -360°, 65°, 65° | ||
| Print Contrast Ratio | Down to 15% Minimum Reflective Difference | - | |
| Symbologies Decoded | 1D: Code 39, code 128, code 93, code 11, code 32 Pharmaceutical, EAN, UPC, codabar, China Post,GS1 databar 2D: Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCode, Digital Watermarking: Digimarc OCR: OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 point OCR typeface | - | |
| User | |||
| Indicators | Good decode LEDs, Beeper (adjustable tone and volume), Vibration (adjustable) | Good decode LEDs, Battery Status LED, Bluetooth Connection Status LED, Beeper (adjustable tone and volume), Vibration adjustable) | Charging/Charge indicator |
| Communications | |||
| Host System Interfaces | USB, Keyboard Wedge, RS232 TTL (cables available to convert for +/-12V True use) | - | USB, Keyboard Wedge, RS232 TTL (cables available to convert for +/-12V True use) |
| Bluetooth Radio | - | Bluetooth v4.2; Class 1: 100 m line of sight | - |
| Part Number | Model Number | Description | RRP Inc GST |
T % |
|---|---|---|---|---|
| [A] Honeywell Granit Ultra 2100i 2D Barcode Reader Kits | ||||
| 2100ISR-3USBR | ||||
| 2100IXLR-3SERR | ||||
| 2100IXLR-3USBR | ||||
| 2100IXR-3SERR | ||||
| 2100IXR-3USBR | ||||
| [B] Honeywell Granit Ultra 2105i Wireless 2D Barcode Reader Kits | ||||
| 2105ISR-3USB-CLHR | ||||
| 2105IXLR-3SER-CLHR | ||||
| 2105IXLR-3USB-CLHR | ||||
| 2105IXR-3SER-CLHR | ||||
| 2105IXR-3USB-CLHR | ||||
| [C] Honeywell Granit Ultra 2100i 2D Barcode Reader Only | ||||
| 2100ISR-3R | ||||
| 2100IXR-3R | ||||
| 2100IXLR-3R | ||||
| [D] Honeywell Granit Ultra 2105i 2D Barcode Reader Only | ||||
| 2105ISR-3-CLR | ||||
| 2105IXR-3-CLR | ||||
| 2105IXLR-3-CLR | ||||
| [E] Interface Cables | ||||
| CBL-020-300-C00 | HONEYWELL CABLE SCANNER RS232 5V 3M CLD BLK | $44.00 | C2 | |
| CBL-020-300-C00-01 | ||||
| CBL-020-300-C00-02 | HONEYWELL CABLE RS232 5V SIGNAL DB9F COILED 3M IND | $66.00 | C2 | |
| CBL-500-300-C00 | HONEYWELL CABLE 1200/1300/1900 USB A COILED 3M BLK | $44.00 | C2 | |
| CBL-500-300-C00-07 | HONEYWELL CABLE 1980/1990 USB COILED 3M INDUST | $88.00 | C2 | |
| CBL-500-300-S00 | HONEYWELL CABLE 1200/1300/1900 USB A STR 3M BLK | $44.00 | C2 | |
| CBL-500-300-S00-01 | ||||
| CBL-501-300-C00 | ||||
| CBL-503-300-C00 | ||||
| CBL-503-300-S00 | ||||
| CBL-503-500-C00 | ||||
| CBL-720-300-C00 | ||||
| CBL-800-300-C00 | ||||
| [F] Charging Base | ||||
| CCB22-100BT-07N | ||||
| [G] External Battery Charger | ||||
| MB4-BAT-SCN11 | ||||
| BAT-SCN11-CUP | ||||
| [H] Battery | ||||
| BAT-SCN11 | ||||
| [I] Accessories | ||||
| PS-05-3000-W-U | ||||
| HOLSTER-INDUSTRIAL | ||||
| TOOLBAL | HONEYWELL REEL KIT SCANNER | $264.00 | C2 | |
| 199XILNYRDPLT | ||||
| 199XIORING | ||||
| 2105IENDCAP | ||||
| CCB23ORING | ||||
| PSORING | ||||
| HOLDER-010-U | ||||
| STND-33F00-012-4 | HONEYWELL STAND 33CM FLEXI GRANIT 191X | $110.00 | C2 | |
| VMHOLDER2K | HONEYWELL VEHICLE MOUNT CUP GRANIT | $143.00 | C2 | |
| VMHOLDER3K | HONEYWELL VEHICLE MOUNT KIT GRANIT | $176.00 | C2 | |
| VMHOLDER4K | ||||
| VMHOLDER5K | ||||
| 520-24-H3 | ||||
| 520-36/48-H3 | ||||
| [J] Service Contracts Granit Ultra 1200i | ||||
| SVC2100I-SG3N | ||||
| SVC2100I-SG5N | ||||
| SVC2100I-SG1R | ||||
| SVCREPLACE-SCN3 | HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 3Y | $44.00 | V | |
| SVCREPLACE-SCN5 | HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 5Y | $77.00 | V | |
| SVCREPLACE-SCN1 | HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 1Y | $22.00 | V | |
| ISCAN1-REPAIR | ||||
| [K] Service Contracts Granit Ultra 12005i | ||||
| SVC2105I-SG3N | ||||
| SVC2105I-SG5N | ||||
| SVC2105I-SG1R | ||||
| SVCREPLACE-SCN3 | HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 3Y | $44.00 | V | |
| SVCREPLACE-SCN5 | HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 5Y | $77.00 | V | |
| SVCREPLACE-SCN1 | HONEYWELL EDGE SERVICE ADDON SCANNER REPLACE 1Y | $22.00 | V | |
| SVCBATTERY-SCN3 | HONEYWELL EDGE SERVICE ADDON SCANNER BATTERY 3Y | $275.00 | V | |
| SVCBATTERY-SCN5 | HONEYWELL EDGE SERVICE ADDON SCANNER BATTERY 5Y | $550.00 | V | |
| SVCBATTERY-SCN1 | HONEYWELL EDGE SERVICE ADDON SCANNER BATTERY 1Y | $275.00 | V | |
| ISCAN2-REPAIR | ||||
