Milesight - EM410-RDL
Radar Distance/Level Sensor


The Milesight EM410-RDL is a non-contact Radar Distance/Level Sensor that adopts Millimeter Wave Radar technology. By measuring millimeter-wave signals at higher frequencies, it provides more stable performance over longer distances, and is less affected by environmental conditions. It can detect the distance between the sensor and liquids of various types, unaffected by temperature, dust, condensate etc. With an IP68 waterproof and sealed enclosure, it can withstand the worst environments, while maintaining measurement accuracy, and does not require routine maintenance. Milesight offers LoRaWAN® and Cellular versions to meet different communication needs. TheLoRaWAN® version can be integrated with a Milesight LoRaWAN® gateway and the Milesight Development Platform, enabling remote and visual management of all sensor data. The Cellular version supports multiple application modes to be compatible with IoT platforms.

The EM410-RDL can be used in sewers, rivers, impounding reservoirs, storage tanks and other locations that require measurement distance and levels, especially of liquids.

Features

  • An 8° Radar beam angle can be focused on the target fluid, enabling accurate measurement of liquid level
  • Wide measuring range of 0.3m to 12m with small blind zone
  • Not affected by dust, condensation, temperature or acoustic noise
  • Non-invasive liquid level monitoring, can detect hazardous or non-hazardous liquids

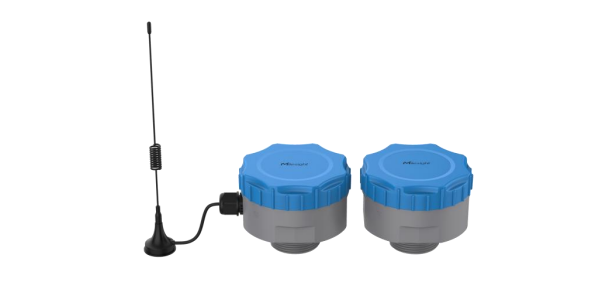

  • Available in external or internal antenna versions for various applications
  • Built-in 3-axis accelerometer sensor to monitor device tilt status
  • Support to check radar-echo curve and one-click diagnostic to calibrate distance, ensuring accurate measurement under different environments
  • Supports blind zone alarm when the ranging results are within the blind zone
  • Enclosure made from PVDF material, offering excellent corrosion resistance, wear resistance and compressive strength for harsh environments
  • IP68 waterproof design, resistant in fresh water to a maximum depth of 1m for up to 48 hours
  • Thread design for common tank installation without extra accessories needed
  • Stores up to 2,000 historical records locally and supports retransmission to prevent data loss
  • Easy configuration via NFC and Bluetooth
  • Support management and OTA upgrade via Milesight Development Platform
  • Functions well with standard LoRaWAN® gateways and network servers
  • Supports multiple Cellular network protocols to be compatible with IoT platforms

Specifications

Physical Characteristics
DimensionsФ 100 × 92.2 mm (h)
Weight400g
InstallationWall Bracket Mounting, Pole Bracket Mounting, Tank Threaded Installation, Normal/Tilt
Enclosure Color & MaterialBlue + Grey, PVDF
Supported Tank ThreadG1 ˝”, G2 ˝”
Environmental Characteristics
Operating TemperatureLoRaWAN® Version: -40°C ~ 70°C
Cellular Version: -35°C ~ 70°C
Relative Humidity0% to 100% (non-condensing)
Ingress ProtectionIP68 (1m underwater, 48 hours)
Power
Battery19000 mAh Li-SOCL2 battery (ER34615)
Battery LifeLoRaWAN® Version: Around 7 Years
Cellular Version: Around 5 Years
(15-min collection Interval+1440-report interval, 25°C)
Sensor Characteristics
TechnologyMillimeter Wave Radar
TargetLiquids or Smooth Surface Solid
Radar Frequency Band60GHz
Detection Angle8°
Detection Distance0.3m to 12m
AccuracyUp to ± 2mm
Wireless Characteristics
LoRaWAN Version
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16 dBm (868 MHz)/20 dBm (915MHz)/19 dBm (470MHz)
Sensitivity137dBm @300bps
ModeOTAA/ABP Class A
AntennaInternal Antenna or External Antenna (Hardware Optional)
External Antenna (EA) Version: 1 × 50 Ω SMB Male Connector
4G Cellular Version
Frequency BandLTE (CAT 1): B1/B3/B5/B7/B8/B20/B28 for EMEA/Australia/New Zealand
SIM Slot1 x Nano SIM (4FF) Slot
Application ModeTCP/UDP/MQTT/AWS/Milesight Development Platform
AntennaInternal Antenna or External Antenna (Hardware Optional)
External Antenna (EA) Version: 1 × 50 Ω SMB Male Connector
Configuration
WirelessMobile App via NFC or Bluetooth
User
LED Indicator1 × LED indicator (Internal)
Advanced Features
AlarmsDistance Threshold Alarm, Distance Change Alarm, Blind Zone Alarm
OtherRadar-echo Curve, Diagnostic, Data Storage, Data Retrievability(LoRaWAN® Version), Data Retransmission/td>


Ordering Information and Pricing
Part Number Model Number Description RRP
Inc GST		 T
%
[A] Milesight EM410-RDL Ultrasonic Sensor
LoRaWAN Version
EM410-RDL-915M EM410-RDL-LW LoRaWAN Radar Distance Sensor, Tilt monitoring, 0.3 to 12 m +/1 2mm, Integrated antenna $561.00 C3
EM410-RDL-915M-EA EM410-RDL-LW-EA LoRaWAN Radar Distance Sensor, Tilt monitoring, 0.3 to 12 m +/1 2mm, External antenna $583.00 C3
4G Version
EM410-RDL-L0CEU EM410-RDL-4G 4G Radar Distance Sensor, Tilt monitoring, 0.3 to 12 m +/1 2mm, External antenna $616.00 C3
EM410-RDL-L0CEU-EA EM410-RDL-4G-EA 4G Radar Distance Sensor, Tilt monitoring, 0.3 to 12 m +/1 2mm, External antenna $638.00 C3
